Individual Skates — MSR Series

Light weight, cost-effective machinery skates for 1 to 6-ton loads, with rigid or swivel tops and a diamond, padded or smooth top plate.

Overview

Move Machinery Safely, Without Marring Your Floor

Light weight, cost effective solution for moving heavy equipment — machinery can be relocated safely and effectively. Special nylon wheels are designed to resist marring your floors and combine with a turntable to accommodate any turn required. A lock enables each unit to be used as a swivel or rigid top skate, and a diamond-style top plate ensures a non-slip surface.

Manufactured & marketed by Bombay Engineering — Mumbai 400 010.

Capacity: 1–6 Ton Height: 4.00"–6.60" Nylon · Stainless · Polyurethane · Mild Steel
MSR-1 individual machinery skate, 1 ton capacity
Top Style & Wheel Options

Four Top Styles, Three Wheel Materials

  • Rigid Diamond — fixed top plate with a diamond-tread non-slip surface, for straight-line moves.
  • Swivel Diamond — swivelling top with diamond tread, for turning corners without lifting the load.
  • Swivel Padded — swivelling top with a compressible neoprene pad for a non-slip surface on less-than-perfect floors.
  • Swivel Smooth — swivelling smooth steel top, ideal for mounting directly to equipment or as a base for other top modifications.
  • Nylon Wheels — good floor protection and favourable wear; will not "set" if left under static load for a period of time.
  • Poly Wheels — a softer wheel that provides excellent floor protection on tile floor.
  • Steel Wheels — the best wear characteristics; great for durable floors.
Specifications

MSR Individual Skate Dimensions

All capacities in metric tons. Height varies with top style; width and length are constant per capacity class.

MSR-3 individual Skate
1 Ton

MSR-1N

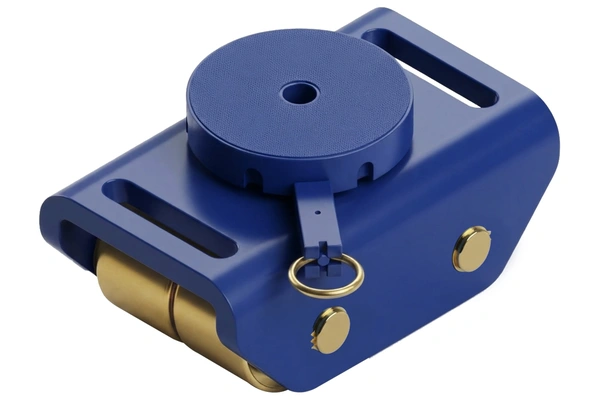

MSR-3 individual Skate
3 Ton

MSR-3N

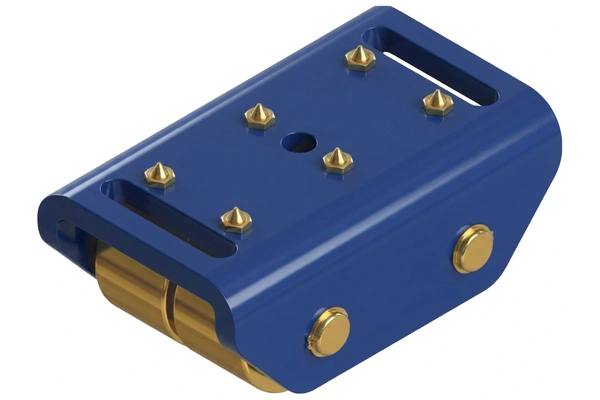

MSR-6 individual Skate
6 Ton

MSR-6N

MSR-1 — 1 Ton Capacity
Product No.Top StyleRoller MaterialHeight (in / mm)Width (in / mm)Length (in / mm)
MSR-1NRigid DiamondNylon4.00 / 1024.43 / 1136.5 / 165
MSR-1SSRigid DiamondStainless Steel4.00 / 1024.43 / 1136.5 / 165
MSR-1PURigid DiamondPolyurethane4.00 / 1024.43 / 1136.5 / 165
MSR-1MSRigid DiamondMild Steel4.00 / 1024.43 / 1136.5 / 165
MSR-1NSwivel PaddedNylon4.99 / 1274.43 / 1136.5 / 165
MSR-1SSSwivel PaddedStainless Steel4.99 / 1274.43 / 1136.5 / 165
MSR-1PUSwivel PaddedPolyurethane4.99 / 1274.43 / 1136.5 / 165
MSR-1MSSwivel PaddedMild Steel4.99 / 1274.43 / 1136.5 / 165
MSR-1NSwivel DiamondNylon4.43 / 1134.43 / 1136.5 / 165
MSR-1SSSwivel DiamondStainless Steel4.43 / 1134.43 / 1136.5 / 165
MSR-1PUSwivel DiamondPolyurethane4.43 / 1134.43 / 1136.5 / 165
MSR-1MSSwivel DiamondMild Steel4.43 / 1134.43 / 1136.5 / 165
MSR-1NSwivel SmoothNylon4.36 / 1104.43 / 1136.5 / 165
MSR-1SSSwivel SmoothStainless Steel4.36 / 1104.43 / 1136.5 / 165
MSR-1PUSwivel SmoothPolyurethane4.36 / 1104.43 / 1136.5 / 165
MSR-1MSSwivel SmoothMild Steel4.36 / 1104.43 / 1136.5 / 165
MSR-3 — 3 Ton Capacity
Product No.Top StyleRoller MaterialHeight (in / mm)Width (in / mm)Length (in / mm)
MSR-3NRigid DiamondNylon4.36 / 1105.23 / 1338.0 / 203
MSR-3SSRigid DiamondStainless Steel4.36 / 1105.23 / 1338.0 / 203
MSR-3PURigid DiamondPolyurethane4.36 / 1105.23 / 1338.0 / 203
MSR-3MSRigid DiamondMild Steel4.36 / 1105.23 / 1338.0 / 203
MSR-3NSwivel PaddedNylon5.35 / 1365.23 / 1338.0 / 203
MSR-3SSSwivel PaddedStainless Steel5.35 / 1365.23 / 1338.0 / 203
MSR-3PUSwivel PaddedPolyurethane5.35 / 1365.23 / 1338.0 / 203
MSR-3MSSwivel PaddedMild Steel5.35 / 1365.23 / 1338.0 / 203
MSR-3NSwivel DiamondNylon4.79 / 1225.23 / 1338.0 / 203
MSR-3SSSwivel DiamondStainless Steel4.79 / 1225.23 / 1338.0 / 203
MSR-3PUSwivel DiamondPolyurethane4.79 / 1225.23 / 1338.0 / 203
MSR-3MSSwivel DiamondMild Steel4.79 / 1225.23 / 1338.0 / 203
MSR-3NSwivel SmoothNylon4.79 / 1225.23 / 1338.0 / 203
MSR-3SSSwivel SmoothStainless Steel4.79 / 1225.23 / 1338.0 / 203
MSR-3PUSwivel SmoothPolyurethane4.79 / 1225.23 / 1338.0 / 203
MSR-3MSSwivel SmoothMild Steel4.79 / 1225.23 / 1338.0 / 203
MSR-6 — 6 Ton Capacity (Rigid Diamond)
Product No.Roller MaterialHeight (in / mm)Width (in / mm)Length (in / mm)
MSR-6NNylon4.45 / 11310.00 / 25411.00 / 279
MSR-6SSStainless Steel4.45 / 11310.00 / 25411.00 / 279
MSR-6PUPolyurethane4.45 / 11310.00 / 25411.00 / 279
MSR-6MSMild Steel4.45 / 11210.00 / 25411.00 / 279
MSR-6NNylon6.60 / 14210.00 / 25411.00 / 279
MSR-6SSStainless Steel6.60 / 14210.00 / 25411.00 / 279
MSR-6PUPolyurethane6.60 / 14210.00 / 25411.00 / 279
MSR-6MSMild Steel6.60 / 14210.00 / 25411.00 / 279
MSR-6NNylon5.10 / 12910.00 / 25411.00 / 279
MSR-6SSStainless Steel5.10 / 12910.00 / 25411.00 / 279
MSR-6PUPolyurethane5.10 / 12910.00 / 25411.00 / 279
MSR-6MSMild Steel5.10 / 12910.00 / 25411.00 / 279
MSR-6NNylon4.85 / 12310.00 / 25411.00 / 279
MSR-6SSStainless Steel4.85 / 12310.00 / 25411.00 / 279
MSR-6PUPolyurethane4.85 / 12310.00 / 25411.00 / 279
MSR-6MSMild Steel4.85 / 12310.00 / 25411.00 / 279

Four height variants per capacity correspond to the four MSR-6 top styles (Rigid Diamond shown; Swivel Padded, Swivel Diamond and Swivel Smooth follow the same pattern as the 1 and 3-ton classes).

One-Year Manufacturing Warranty

We warrant each new roller sold to be free from manufacturing defects in normal service for a period of one year from delivery to the original user, repaired or replaced at our Service Facility. Specifications are general information and are not binding — Bombay Engineering reserves the right to change specifications without notice.
