Round Turntable (Swivel Lock)

Kits & Economy Sets — Up To 15–200 Tons

Everything Needed For Heavy Moves, In One Case

Everything required to make heavy moves up to 200 tons is included in Bombay Engineering Kits and Economy Sets. Both include four swivel-locking BE Rollers with either padded or diamond steel tops, and two steering handles. Four preload pads are included where noted. Sets contain full-length steering handles; kits contain knock-down handles that fit into a sturdy storage case. Kit cases are lockable and have lifting grips for easy handling, protecting contents from exposure and theft.

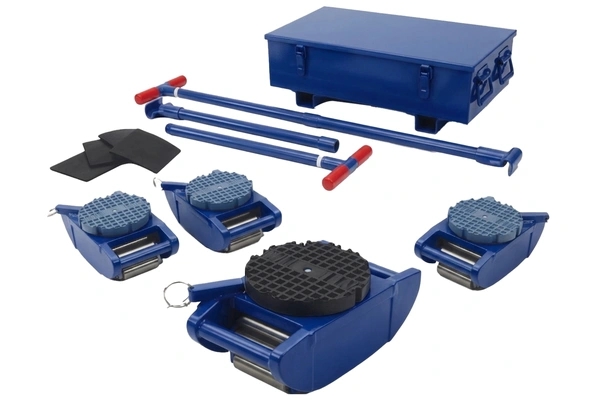

Delux kit — swivel lock rollers, steering handles and storage case

Kit / Set Specifications — 15 to 200 Tons

All kits include steel cases; Kit Box KD-D2: 27.25" (706mm) x 14.75" (375mm) x 9.63" (245mm).

Kit Capacity (Tons)	Product No.	Kit / Set Includes	Weight lb (kg)
15	KRS-15-SLP	(4) 3.75-SLP Rollers; (2) KDH48F Handles	203 (92)
15	RS-15-SLP	(4) 3.75-SLP Rollers; (2) H36F 36" Handles	156 (71)
15	KRS-15-SLD	(4) 3.75-SLD Rollers; (4) P-1 Preload Pads; (2) KDH48F Handles	203 (92)
15	RS-15-SLD	(4) 3.75-SLD Rollers; (4) P-1 Preload Pads; (2) H36F 36" Handles	156 (71)
30	KRS-30-SLP	(4) 7.75-SLP Rollers; (2) KDH48F Handles	215 (97)
30	RS-30-SLP	(4) 7.75-SLP Rollers; (2) H48F 48" Handles	172 (78)
30	KRS-30-SLD	(4) 7.75-SLD Rollers; (4) P-1 Preload Pads; (2) KDH48F Handles	215 (97)
30	RS-30-SLD	(4) 7.75-SLD Rollers; (4) P-1 Preload Pads; (2) H48F 48" Handles	172 (78)
40	KRS-40-SLP	(4) 10-SLP Rollers; (2) KDH48F Kit Size Handles	219 (99)
40	RS-40-SLP	(4) 10-SLP Rollers; (2) H48F 48" Handles	176 (80)
40	KRS-40-SLD	(4) 10-SLD Rollers; (4) P-1 Preload Pads; (2) KDH48F Handles	219 (99)
40	RS-40-SLD	(4) 10-SLD Rollers; (4) P-1 Preload Pads; (2) H48F 48" Handles	176 (80)
60	KRS-60-SLP	(4) 15-SLP Rollers; (2) H48F 48" Kit Size Handles	212 (96)
60	RS-60-SLP	(4) 15-SLP Rollers; (4) P-1 Preload Pads; (2) KDH48F Handles	259 (117)
60	KRS-60-SLD	(4) 15-SLD Rollers; (4) P-1 Preload Pads; (2) H48F 48" Handles	216 (98)
120	RS-120-SLD	(4) 30-SLP Rollers; (2) H60F 60" Handles	542 (246)
120	RS-120-SLP	(4) 30-SLD Rollers; (4) P-2 Preload Pads; (2) H60F 60" Handles	540 (245)
200	RS-200-SLP	(4) 50-SLP Rollers; (2) H60F 60" Handles	834 (378)
200	RS-200-SLD	(4) 50-SLD Rollers; (4) P-2 Preload Pads; (2) H60F 60" Handles	848 (384)

RT Swivel Lock — Individual Rollers · 3.75–50 Tons

Six Capacities, Two Moving Types, Three Top Styles

With six capacities, two moving types (rigid and swivel locking) and three top styles (padded, diamond steel and smooth steel), there's a model for almost every heavy moving application. For straight-line moves, specify the rigid roller; for turns, even in the tightest corners, use the swivel-locking rollers, which combine swivel and rigid designs with spring-loaded locks engaging every 45°. Steering handles are available in three lengths: 36" (914mm), 48" (1219mm) and 60" (1524mm). "D" tops have a spike-like steel grid that grips into wood or crated/palletized equipment; "P" tops have a built-in neoprene pad for a non-slip surface on less-than-perfect floors; "S" tops have a smooth steel surface ideal for mounting to equipment or as a base for other top modifications.

Capacity (Tons)	Product No.	Top Style	Height in (mm)	Width in (mm)	Length in (mm)	Weight lb (kg)	Contact Rolls
3.75	3.75-SLP	Swivel Locking Padded	5 (127)	5-3/4 (146)	10-1/2 (267)	34 (15)	5
7.5	7.5-SLP		5-1/4 (133)	5-3/4 (146)	10-1/2 (267)	38 (17)	4
10	10-SLP		5-1/4 (133)	5-3/4 (146)	10-1/2 (267)	38 (17)	4
15	15-SLP		5-1/8 (130)	8 (203)	12-3/4 (324)	49 (22)	5
30	30-SLP		8 (203)	8 (203)	15 (381)	122 (55)	5
50	50-SLP		8-15/16 (227)	8 (203)	21 (533)	193 (88)	7
3.75	3.75-SLD	Swivel Locking, Diamond Steel Grid	4-3/4 (121)	5-3/4 (146)	10-1/2 (267)	34 (15)	5
7.5	7.5-SLD		5 (127)	5-3/4 (146)	10-1/2 (267)	37 (17)	4
10	10-SLD		5 (127)	5-3/4 (146)	10-1/2 (267)	37 (17)	4
15	15-SLD		4-7/8 (124)	6-3/8 (162)	12-3/4 (324)	49 (22)	5
30	30-SLD		7-3/32 (180)	8 (203)	15 (381)	118 (54)	5
50	50-SLD		8-1/16 (205)	8 (203)	21 (533)	189 (86)	7
3.75	3.75-SLS	Swivel Locking With Smooth Steel	4-5/8 (117)	6 (152)	10-1/2 (267)	35 (16)	5
7.5	7.5-SLS		4-7/8 (124)	6 (152)	10-1/2 (267)	38 (17)	4
10	10-SLS		4-7/8 (124)	6 (152)	10-1/2 (267)	38 (17)	4
15	15-SLS		4-3/4 (121)	6-3/8 (162)	12-3/4 (324)	50 (23)	5
30	30-SLS		6-31/32 (177)	8 (203)	15 (381)	119 (54)	5
50	50-SLS		7-15/16 (202)	8 (203)	20-7/8 (530)	191 (87)	7
3.75	3.75-RP	Rigid Padded	4-3/16 (106)	5-3/4 (146)	10-1/2 (267)	29 (13)	5
7.5	7.5-RP		4-7/16 (113)	5-3/4 (146)	10-1/2 (267)	33 (15)	4
10	10-RP		4-7/16 (113)	5-3/4 (146)	10-1/2 (267)	33 (15)	4
15	15-RP		4-5/16 (110)	6-3/8 (162)	12-3/4 (324)	42 (19)	5
30	30-RP		6-3/4 (171)	8 (203)	15 (381)	107 (49)	5
50	50-RP		7-3/4 (197)	8 (203)	21 (533)	179 (81)	7
3.75	3.75-RD	Rigid With Diamond Steel Grid	4-1/16" (103)	5-5/8 (143)	10-1/2 (267)	29 (13)	5
7.5	7.5-RD		4-5/16" (110)	5-5/8 (143)	10-1/2 (267)	32 (15)	4
10	10-RD		4-5/16" (110)	5-5/8 (143)	10-1/2 (267)	32 (15)	4
15	15-RD		4-3/32" (104)	6-3/8 (162)	12-3/4 (324)	38 (17)	5
30	30-RD		6-1/8" (156)	8 (203)	15 (381)	105 (48)	5
50	50-RD		7-1/8" (181)	8 (203)	21 (533)	176 (80)	7
3.75	3.75-RS	Rigid With Smooth Steel	3-11/16 (94)	5-5/8 (143)	10-1/2 (267)	29 (13)	5
7.5	7.5-RS		3-16/16 (100)	5-5/8 (143)	10-1/2 (267)	32 (15)	4
10	10-RS		3-15/16 (100)	5-5/8 (143)	10-1/2 (267)	32 (15)	4
15	15-RS		3-13/16 (97)	6-3/8 (162)	12-3/4 (324)	43 (20)	5
30	30-RS		5-3/4 (146)	8 (203)	15 (381)	105 (48)	5
50	50-RS		6-3/4 (171)	8 (203)	21 (533)	176 (80)	7
