Tilting Machinery Skate & I-Beam Guide Roller

A self-adjusting tilting-top skate for uneven floors, and a structural I-beam guide roller assembly for precise linear alignment.

Heavy-Duty Tilting Machinery Moving Skate

Stability On Uneven Industrial Surfaces

Professionally engineered for heavy industrial rigging and plant machinery relocation. Features a dynamic articulating top plate with an anti-slip rubber cushion to maintain stability on uneven industrial surfaces.

Model: BE-TMS12 — Industrial Grade

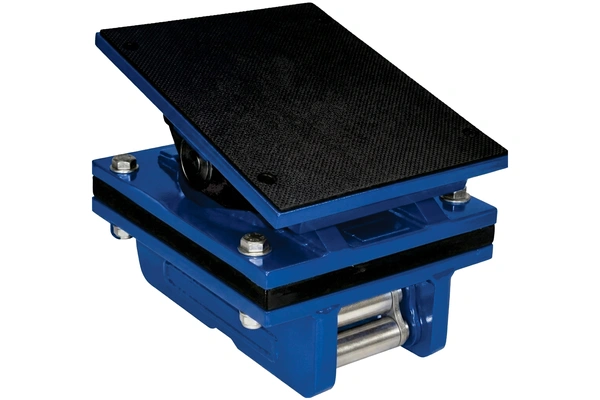

Heavy-Duty Tilting Machinery Moving Skate, Model BE-TMS12
Technical Specifications — BE-TMS12
ParameterSpecification
Load Capacity RangeUpto 100 Ton
Body MaterialReinforced High-Grade Carbon Steel
Roller TypeHardened Steel Roller Assembly
Surface CoatingAnti-Corrosive Industrial Powder Finish
Top Plate LiningHeavy Duty Textured Vulcanized Rubber
ApplicationCNC Machinery, Factories, Heavy Rigging
Key Features
  • Articulate Top Plate — self-adjusting swivel & tilt mechanism prevents load shifting over floor unevenness.
  • Anti-Slip Rubber Pad — premium textured vulcanized black rubber face provides extreme grip and surface protection.
  • Robust Construction — rigid structural steel chassis finished with high-durability industrial corrosion-resistant blue coating.
  • Heavy-Duty Rollers — high-tensile precision steel rollers ensure smooth movement with minimal friction.
  • Shock Absorption — center rubber damping layer handles impact and absorbs vibrations effectively during transport.

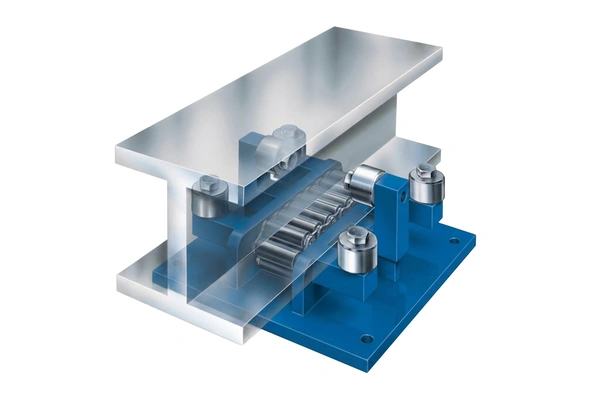

Heavy-Duty I-Beam Guide Roller Assembly, Model BE-IGR80
Heavy-Duty I-Beam Guide Roller Assembly

Precise Linear Alignment On Standard I-Beams

Designed for high-capacity material handling and precise linear alignment. This structural guide assembly runs seamlessly on standard I-Beams, incorporating heavy-duty side-thrust rollers and an internal continuous chain-roller system for extreme load distribution.

Model: BE-IGR80 — Structural Guide Series

Technical Specifications — BE-IGR80
ParameterSpecification
Compatible Track SizeStandard I-Beam Flanges (Width: 100–300 mm)
Maximum Static LoadUpto 300 Ton
Chassis FinishRAL 5017 Powder Coated Finish
Guide Roller BearingsHigh-Tensile Hardened Steel Bearings
Track AssemblyEndless Chain Multi-Roller System
Industry StandardsISO 9001:2015 Industrial Compliance
Key Features
  • Dual Side-Thrust Rollers — hardened steel horizontal guide bearings ensure precise alignment along the I-Beam flange edges.
  • Continuous Chain-Roller System — built-in heavy-duty endless track roller design for linear stability and friction reduction under high compression loads.
  • Industrial Coating — durable powder-coated chassis finished in RAL 5017 Traffic Blue for outstanding corrosion and wear protection.
  • Heavy-Gauge Base Plate — rigid steel foundation pre-drilled for precise machine mounting and alignment anchors.
  • Smooth Structural Interfacing — engineered specifically to maintain stability and prevent lateral shifting during heavy structural transport.
You May Also Need

Related Products

Cradle Roller Roller Skate Express Rocker System All Products →

Uneven Floor Or Running On An I-Beam?

Our tilting skate and I-beam guide roller solve two different alignment problems — tell us which one you have.

Request A Quote
